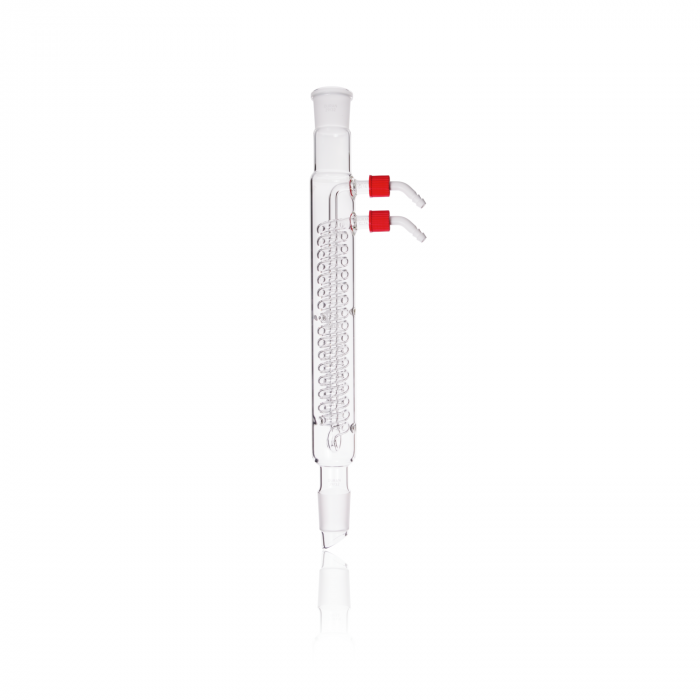

DURAN® Dimroth Condenser with 2 standard ground joints, 160-400 ml

• Manufactured from 3.3 expansion borosilicate glass
• Article 242548205 complies with DIN 12591
• The design of this condenser creates a larger heat exchange surface making it a more efficient design than Liebig or Allihn condenser
• With detachable plastic GL4 screwthread connectors for easy and safe attachment of inlet and outlet tubing
• Tight closure due to standard ground joint

Catalog No          Jacket Length (mm)         Socket Size        Cone (NS)        Remarks

242546101          160        14/23    14/23    Special size, non-DIN size.

242547209          250        29/32    29/32    Special size, non-DIN size.

242547106          250        24/29    24/29    Special size, non-DIN size.

242548205          400        29/32    29/32    -
